Single Head Knives to 25" (660mm) Diameter* (with additional fitting)
Positive and negative angles
High Stock Removal Rate
Low Micron Finish Count
Total Variable Speed Control
Volume Coolant Delivery
Total Enclosure
Low Noise Level
Coolant Retention
Environmentally Friendly
Oil Mist Reduction
Safety Interlock
Operator Protection
Low Voltage Control Circuit

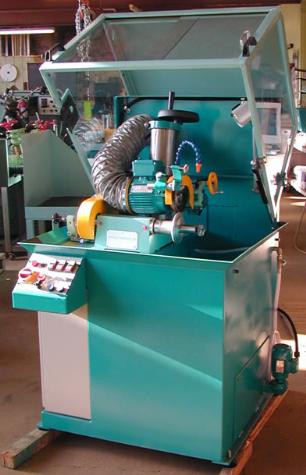

There are 2 motors, one to drive the knife carrier shaft and the other to drive the grinding wheel. The assembly is built up of cast iron castings on a cast iron base through which the knife carrier shaft passes carried on self lubricated bearings with grit excluders. Standard capacity is for knives up to 20" (500mm) diameter although 25" (660mm) diameter is available if specified. To achieve maximum stability and efficiency the grinding wheel is mounted direct on an inverter-rated high speed motor which is laterally adjustable to fine limits on a dovetail slide. A clearly graduated scale is provided for both positive and negative grinding angles. Single or double bevel knives are located either by arbor or direct on the knife carrier shaft and the rotating blade is fed automatically into the wheel at an adjustable rate. A slide can be set so that after a pre-determined amount of stock has been removed the feed will be automatically arrested.
