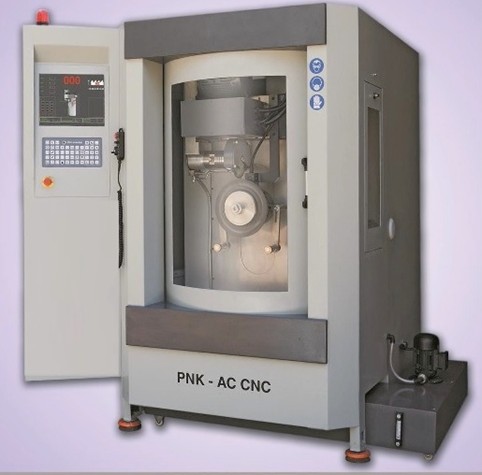

PNK-AC-CNC

CNC grinding machine for HSS saws, Cold saws, Friction Saw.

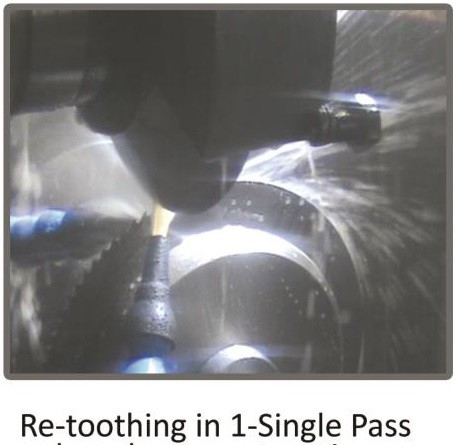

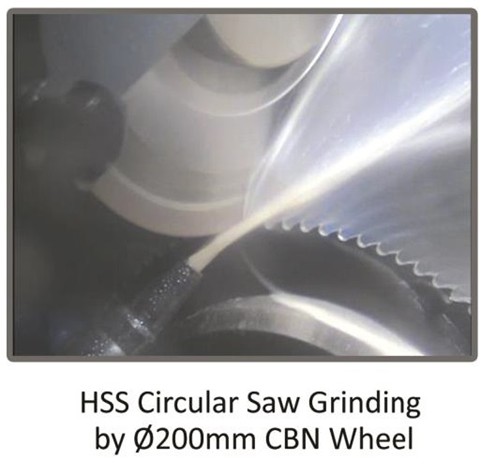

CNC HSS Saw Grinder provides a fully automatic process for HSS saw blades, complete tooth removal, re-toothing, re-grinding and chamfering in one set up. The PNK-AC-CNC is the ideal machine for the complete machining of metal circular saws. It guarantees optimum grinding quality with its state of the art technology. All the data relating to the circular saw is entered into the control panel.

-4 Axis servo motor controlled.

-PC controlled, windows operating system, operator friendly.

-For saws up to 700 mm diameter with the option for 1000 mm and more if required.

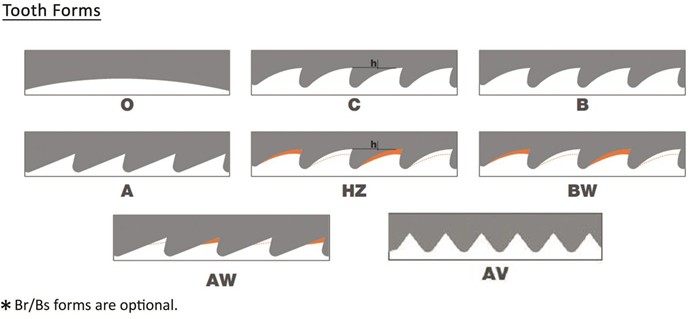

-Grinding of all common tooth types in one cycle.

-Automatic calculation of tooth pitch.

-4kW Grinding wheel motor as standard.

-Ergonomic totally enclosed cabin for safety and ease of loading/unloading.

-Integrated air suction system, coolant system.
